Product Details:
Payment & Shipping Terms:
|
| Identify Code: | AS10-1-17 | Weighing Range: | 2-200g |
|---|---|---|---|
| Accuracy: | X(0.5) | Max Speed: | 60P/M |
| Hopper Volume: | 0.5L | Options: | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Packing Dimension(mm): | 1160(L)x900(W)x900(H) | Gross Weight: | 380kg |
| High Light: | 15g multihead weigher packing machine,60P/M multihead weigher packing machine,15g automatic multihead weigher |
||

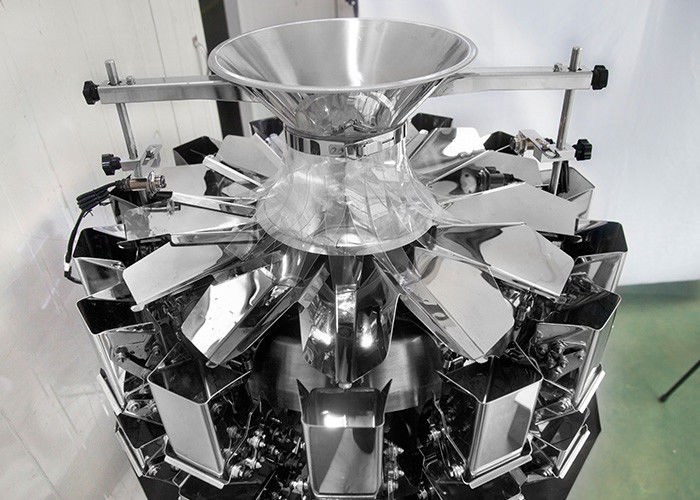

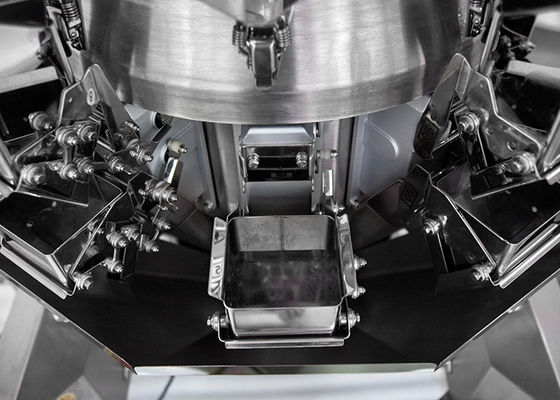

Small Granules 15g Multihead Weigher Packing Machine
II series mini multi-head combination weigher is used to weigh small particles such as Chinese herbal medicine tablets, coffee beans, tea, chocolate beans, raisins, snack food, etc. in the II series. The 14 head II series mini multi-head weigher adopts high-precision and high-standard special sensors to make weighing more accurate. The standard touch screens use an LCD screen of 50,000-hours-life, which adopts the immunity standard higher than the EC general standard industrial environment, and achieves a high-level design of 4kV.
Features
1. Special load cell with high precision and high standard.
2. The program recovery function can reduce operation failures and support multi-segment weight calibration.
3. Linear amplitude can be adjusted independently.
4. Many languages are available for global markets.
5. 100 program capacity can meet various weighing requirements and a user-friendly help menu contributes to easy operation.
Mechanical character
1. New type Ⅱ machine frame design, beautiful and elegant.
2. The easy-to-remove upper and lower material tray design makes cleaning more convenient.
3. The new double-parallel line vibrator has less vibration, the side-drive aluminum box reads more accurately, and the weighing accuracy is higher.
4. Weighing material detection, accurately control the feeding time, material thickness, and ensure weighing accuracy.
5. Special V-shaped vibrating plate, small weight weighing design to ensure uniform feeding and weighing accuracy.
6. The new double parallel line vibrator has less vibration, the side drive type aluminum box has more accurate readings, and the weighing accuracy is higher.
Technical specification
| Name | 1st G 10heads II series mini multihead weigher | 1st G 14heads series mini multihead weigher |
| Model | JW-A10 | JW-A14 |
| Identify Code | AS10-1-17 | AS14-1-17 |
| Weighing Range | 2-200g | 2-200g |
| Accuracy | X(0.5) | X(0.5) |
| Max Speed | 60P/M | 120P/M |
| Hopper Volume | 0.5L | |
| Control Panel | 7” Touch Screen | |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device | |
| Driving System | Step Motor | |
| Power Requirement | 220V/800W/50/60Hz/8A | 220V/1100W/50/60Hz/10A |
| Packing Dimension(mm) | 1160(L)x900(W)x900(H) | 1160(L)x900(W)x900(H) |
| Gross Weight | 210kg | 230kg |
Application
Suitable for weighing small weight granules such as Chinese medicine tablets, tea, coffee beans, chocolate beans, currants, and other snack food, hardware, plastic particles, and other particulate materials quantitative weighing.
Specialized in the production of automatic weighing and packaging machinery for 14 years, we devote ourselves to the complete solution of automatic packaging. Now we become the professional multihead weigher (linear weigher/check weigher/metal detector etc ) manufacturing enterprise with large production capability and wide influence in the world. We have successively won the “Guangdong Industry-University-Research Science and Technology Project Award”, “high technology enterprise”, “Technology Innovation Award” in Chinese food processing and packaging industry, Ringier Multihead Combination Weighing Technology Innovation Award, a number of “Utility Model Patent Certificate” and many other honorary certificates.
